Features & Design
ExpressCharge technology
You’ll experience power delivery of up to 130W on Dell devices with ExpressCharge technology that enables:
- 80% charge in one hour
- 35% charge in just 20 minutes
Future-made design
- Swappable module lets you upgrade with ease to meet the needs of your IT environment.
- Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.
Multiply productivity
Thunderbolt™ 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.
Intelligent and simple management
Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.
Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.
Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.
Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.
Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it’s easier than ever to stay productive while managing your dock.
Industry standard compatibility
Dell Thunderbolt™ Dock – WD22TB4 offers wide compatibility across Dell Commercial laptops. It is is also compatible with notebooks from other manufacturers which support industry standards for Thunderbolt™ docking. For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.

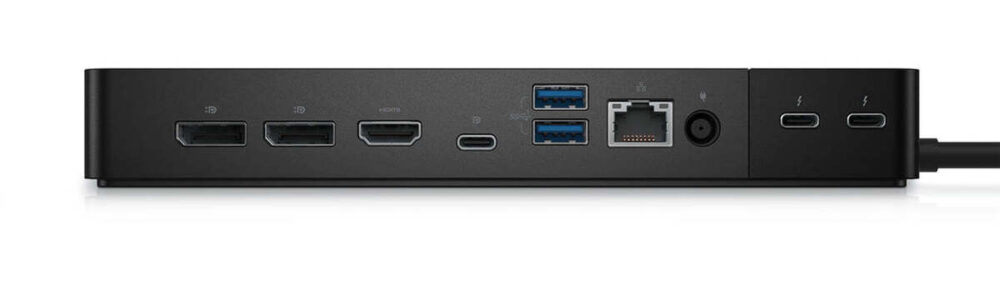

Connectivity Options
1. USB-C 3.2 Gen 2
2. USB-A 3.2 Gen 1 with PowerShare
3. DisplayPort 1.4 (2)
4. HDMI 2.0
6. USB-A 3.2 Gen 1 port (2)
7. Gigabit Ethernet RJ45
8. Power In
9. Thunderbolt™ 4 (2)
All of the dock support, none of the hassle.
Advanced Exchange Service
Tech Specs
130W (Dell systems)
90W (non-Dell systems)
- 5K – 60 Hz (Single Display)
- 4K – 60 Hz (Quad Display)
2 x Thunderbolt 4
Windows 10, Windows 11, Ubuntu 20.04 or later
Ethernet, Fast Ethernet, Gigabit Ethernet
- 2 x display / video – DisplayPort – 20 pin DisplayPort (1.4)
- 1 x display / video – HDMI – 19 pin HDMI 2.0
- 1 x USB-C 3.2 Gen 2/DisplayPort 1.4
- 2 x USB 3.2 Gen 1 – 9 pin USB Type A
- 1 x USB-C 3.2 Gen 2
- 1 x network – Ethernet 1000 – RJ-45
- 1 x USB 3.2 Gen 1 with PowerShare
- 2 x Thunderbolt 4
