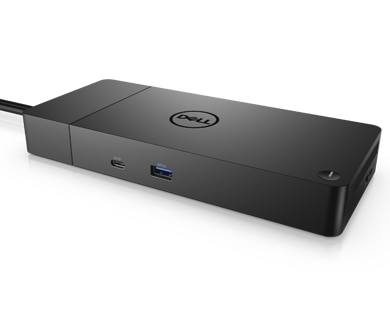

Dell Performance Dock – WD19DCS
Features & Design
Power your connections
Power your day:Dell ExpressCharge allows you to charge up to 80% in one hour , making it the most efficient way to manage the workday.
Adaptable to your workload:Conveniently choose between a single USB-C cable or dual USB-C functionality, a feature compatible with our Precision 7000 workstations. Plus, with magnetically separable USB-C cables, it is easy to get the flexibility you need.
Unmatched charging:Triple your power delivery and charge even faster with a dock that delivers up to 210W of power with dual USB-C connectors.
Dell Performance Dock WD19DCS Spec Sheet
Product Guide
Compatibility guide
Built for the future
Mix and match:Evolve as your needs change with our most powerful and reliable dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity:Dual USB-C connectivity makes it easier than ever to deliver power, data, audio and video as well as connect to system peripherals, no matter what system you use. Plus, with support for up to four displays, including a single 5K and dual 4K monitors, you can connect to everything you need.

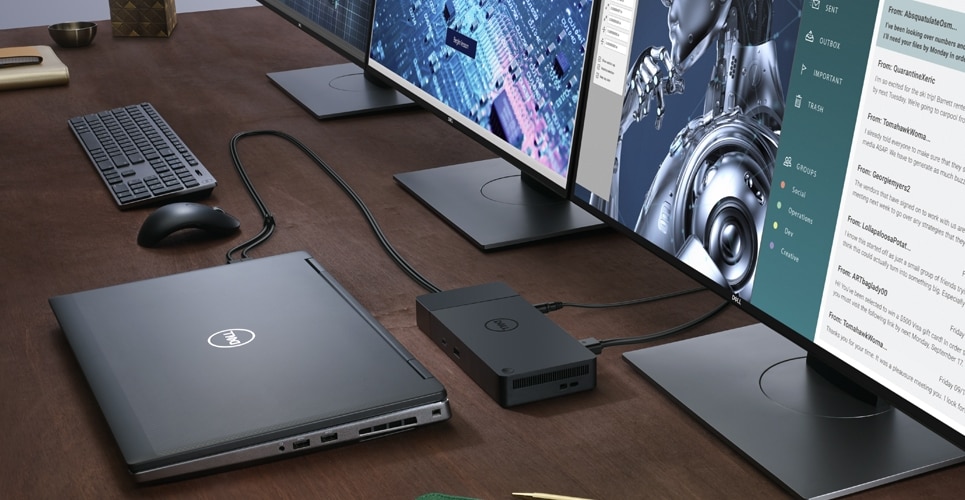

Clean and clutter-free:Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA Mount, that offers the complete flexibility with the built-in 0.8 meter cable.
Information in a flash:With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.
Optimize your workspace
Smooth and seamless:Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.
Secure manageability:Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

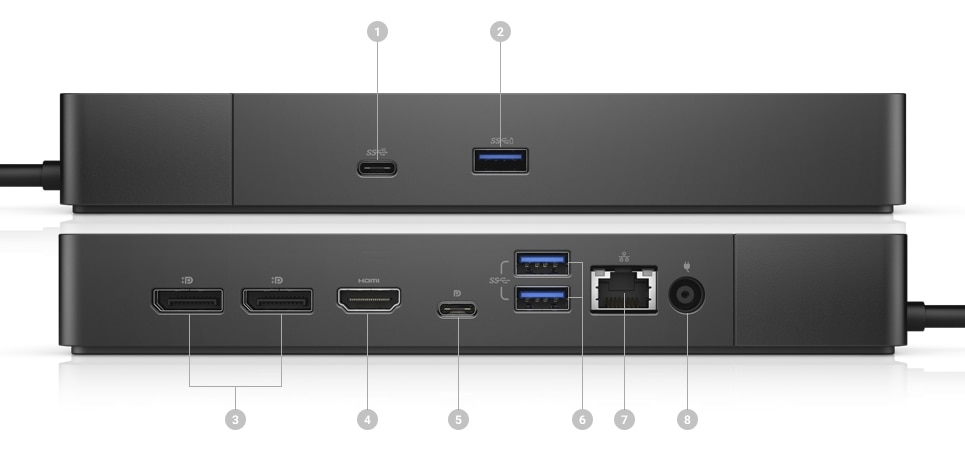

Ports & Slots
2. USB-A 3.1 Gen 1 with PowerShare
3. DisplayPort 1.4
4. HDMI 2.0b
5. USB-C Multifunction DisplayPort
6. Dual USB-A 3.1 Gen 1
7. Gigabit Ethernet RJ45
8. Power In
All of the dock support, none of the hassle
When you choose Premium Support for docking stations you get 24×7 support for configuration, interoperability, and software support. If needed, get next business day Advanced Exchange Service docking station replacement*.
*Advanced Exchange Service: Dell will send you a replacement docking station the next business day in most cases, if deemed necessary after phone/online diagnosis. Shipping times may vary by location. Fee charged for failure to return defective unit.
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Service so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warranty.
WD19DCS is a simplified version of WD19DC without 3.5mm ports.
Tech Specs
210 Watt
Up to 5K: 5120 x 2880 – 60 Hz (Single Display)
Up to 4K: 3840 x 2160 – 60Hz (Three Displays)
1 x dual USB-C cable – 2.6 ft
Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04
Up to 5K: 5120 x 2880 – 60 Hz (Single Display)
Up to 4K: 3840 x 2160 – 60Hz (Three Displays)
Ethernet, Fast Ethernet, Gigabit Ethernet
- 2 x display / video – DisplayPort – 20 pin DisplayPort (1.4)
- 1 x display / video – HDMI – 19 pin HDMI 2.0
- 1 x USB-C 3.2 Gen 2/DisplayPort
- 1 x USB-C 3.2 Gen 2 – 24 pin USB-C
- 2 x USB 3.2 Gen 1 – 9 pin USB Type A
- 1 x USB 3.2 Gen 1 with PowerShare – 9 pin USB Type A
- 1 x network – Ethernet 1000 – RJ-45
1 x dual USB-C cable – 2.6 ft
Security lock slot (cable lock sold separately), 90W power delivery to non-Dell systems, wireless vPro
Noble Wedge security slot / Kensington security slot
DisplayPort 1.4
Power adapter
AC 120/230 V (50/60 Hz)
210 Watt
Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04, Windows 11
Limited warranty – 3 years
