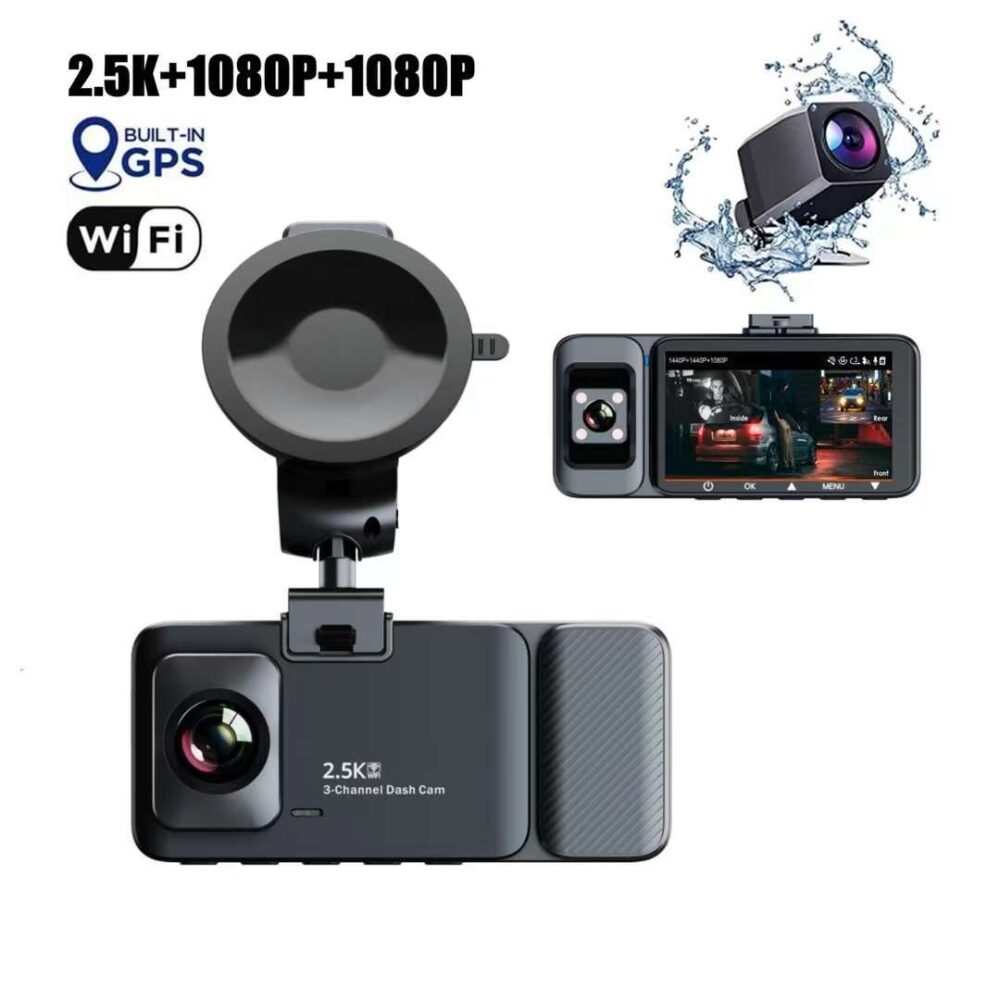

3 CHANNEL K02 DASH CAM 2.5K 1080P WITH BUILTIN GPS WIFI –
Detail:
| Project Name | K02 |
| Product Solutions | Based On NT9656X, 3 Inch LCD, 3 -Way Camera, Multi -Function Expansion Card Machine |
| Version Number | V0.1 |
| Specifications | |
| Conventional Specification | |
| Processor | NOVATEK NT9656X |
| DDR | Built -In 1GB DDR3 |
| Flash | 8MB SPI NORFlash |
| Image Sensor A | 2K/2.5K, Front Photo |
| Image Sensor B | GC2053, In The Car |
| Image Sensor C | GC2053, Pull The Line |
| Image Sensor D | / |
| Lens A | Client Selection, Front Photo |
| Lens B | Client Selection, In The Car |
| Lens C | Client Selection Pull The Line |
| Lens D | / |
| Maximum Video Resolution | 2.5K+1080+1080P/2k+1080+1080P /1080+1080+1080P |
| The Maximum Photo Resolution (Screenshot) | A+B+C：2K+1080P+1080P |
| Coding | H.264/H.265 |
| Video Coding | 4Mbps~8Mbps（1080P） |
| Video Encoding Format | MP4 |
| Photo Format | JPEG |
| Collision Sensor | Three -Axis Acceleration Sensor |
| Record Mode | 3 Minutes Cycle Video (Default) |
| Storage | TF Card (Class 10 Or Above, The Maximum Support 128G) |
| Video Output | / |
| Start Time | <7s (Power -On To Screen Display) |
| Working Voltage Range | 5V~5.3V |
| The Rated Work Voltage | DC 5V |
| Working Current | TBD |
| Quiescent Current | <500ua |
| Work Temperature (℃) | -20~70℃ |
| Storage Temperature (℃) | -30~80℃ |
| Display | 3 “Inch Screen |
| Super Capacitor/Battery | Compatible Supercapacitors/Batteries |
| WIFI | 2.4G WiFi |
| Trumpet | √ |
| Speaker Amplifier | √ |
| Microphone | √ |
| USB Function | PC CAM/POWER/Storage Interface T-C |
| Button | This Machine 5 Key |
| Reset Button | √ |
| Power Supply | USB 5V |
| Safety | / |
| Customized Specifications | |
| GPS | Compatible (Drawing Module) |
| Stuck Hot Plug -In | / |
| Power Detection | Battery Electricity Detection |
| RTC | Button Battery Storage Time |
| APP | |
| Other |
